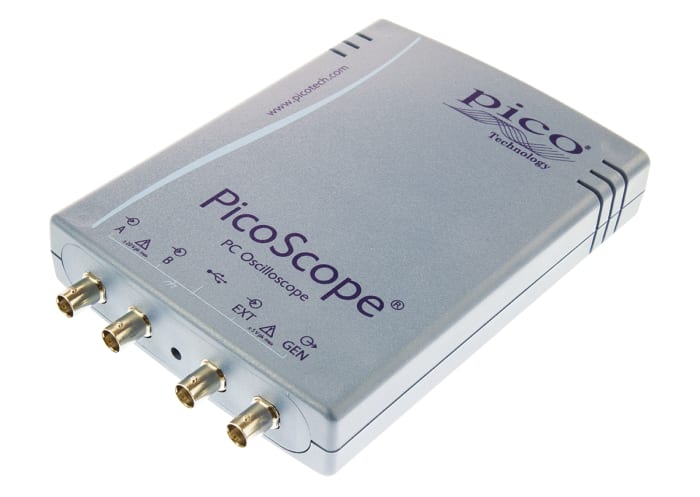

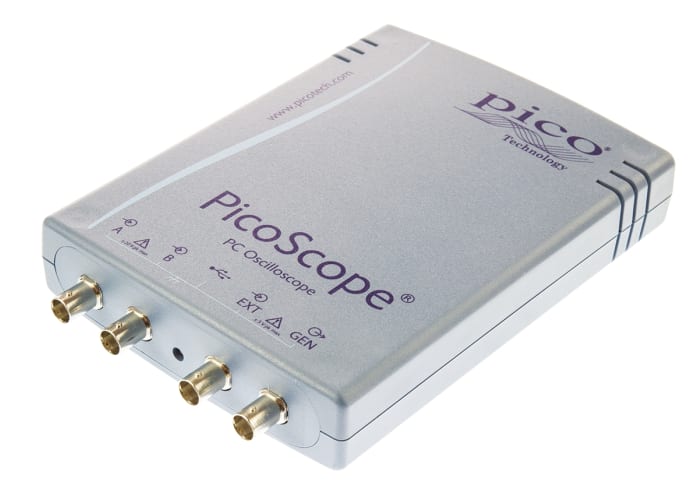

Pico Technology PIcoScope 3206D Осциллограф
Техническая документация
Характеристики
Brand
pico TechnologyПолоса пропускания
200МГц
Количество аналоговых каналов
2
Тип осциллографа
На основе ПК
Интерфейс
CAN, IIC, LIN, RS232, SPI, UART, USB
Частота дискретизации, случайной
10 млрд выборок в секунду
Серия
PicoScope 3000
Вес
500г
Источник питания
Подача
Максимальная чувствительность по вертикали
4В/дел.
Цифровой/аналоговый
Аналоговый
Размеры
190 x 170 x 40мм
Минимальный масштаб по оси времени
500пс/дел.
Минимальная чувствительность по вертикали
4мВ/дел.
Разрешение по вертикали
8 бит
Максимальный масштаб по оси времени
5000с/дел.
Время нарастания
1.75нс
Страна происхождения
United Kingdom
Информация о товаре
PicoScope 3000D Series Oscilloscopes
The compact, USB-connected PicoScope 3000D is a complete portable test system - it plugs into a laptop to become an anywhere, anytime instrument of choice. It is supported by freely-downloadable PicoScope 6 software to offer advanced, cost-effective solutions in applications ranging from systems design, research and test to education, service and repair.
All models come with a USB 3.0 interface and are fully compatible with USB 2.0. In common with all PicoScopes, the 3000D displays waveforms in a re-sizable window on the user's PC screen, creating an uncluttered space for multiple high-resolution analog and digital traces. Saving, sharing and analysing waveforms is quick and simple using PC networking, storage and processing facilities. Deep measuring buffers enable long captures, even at fast real-time sampling rates of up to one gigasample per second. Hardware-accelerated data processing maintains smooth and rapid display updates, even with very large capture sizes.
A lot of advanced features are included as standard in the 3000D e.g. math channels, automatic measurements with statistics, spectrum analysis and colour persistence display mode. Also built-in are advanced digital triggering with pulse width, window, dropout, channel logic, digital pattern and other qualifiers, mask limit testing and alarms. Serial decoding supports SPI, I2C, I2S, RS-232/UART, CAN, LIN and FlexRay protocols on up to 20 analog and digital channels, even with a mixture of protocols at the same time.
Supplied with
Switchable x1/x10 probes (1 per analog channel) in carrying case, Quick Start guide, software and reference CD, USB cables, power adaptor (with 4 analog channel models only)
Pico PC Based Instruments
Информация о наличии не успела загрузиться
Пожалуйста, перезагрузите страницу (ctrl+F5)
тг 483 895,38
Each (ex VAT)
Calibration type
No Calibration
1
тг 483 895,38
Each (ex VAT)
Calibration type
No Calibration
1
